Jenkins Dashboard with Grafana and Prometheus

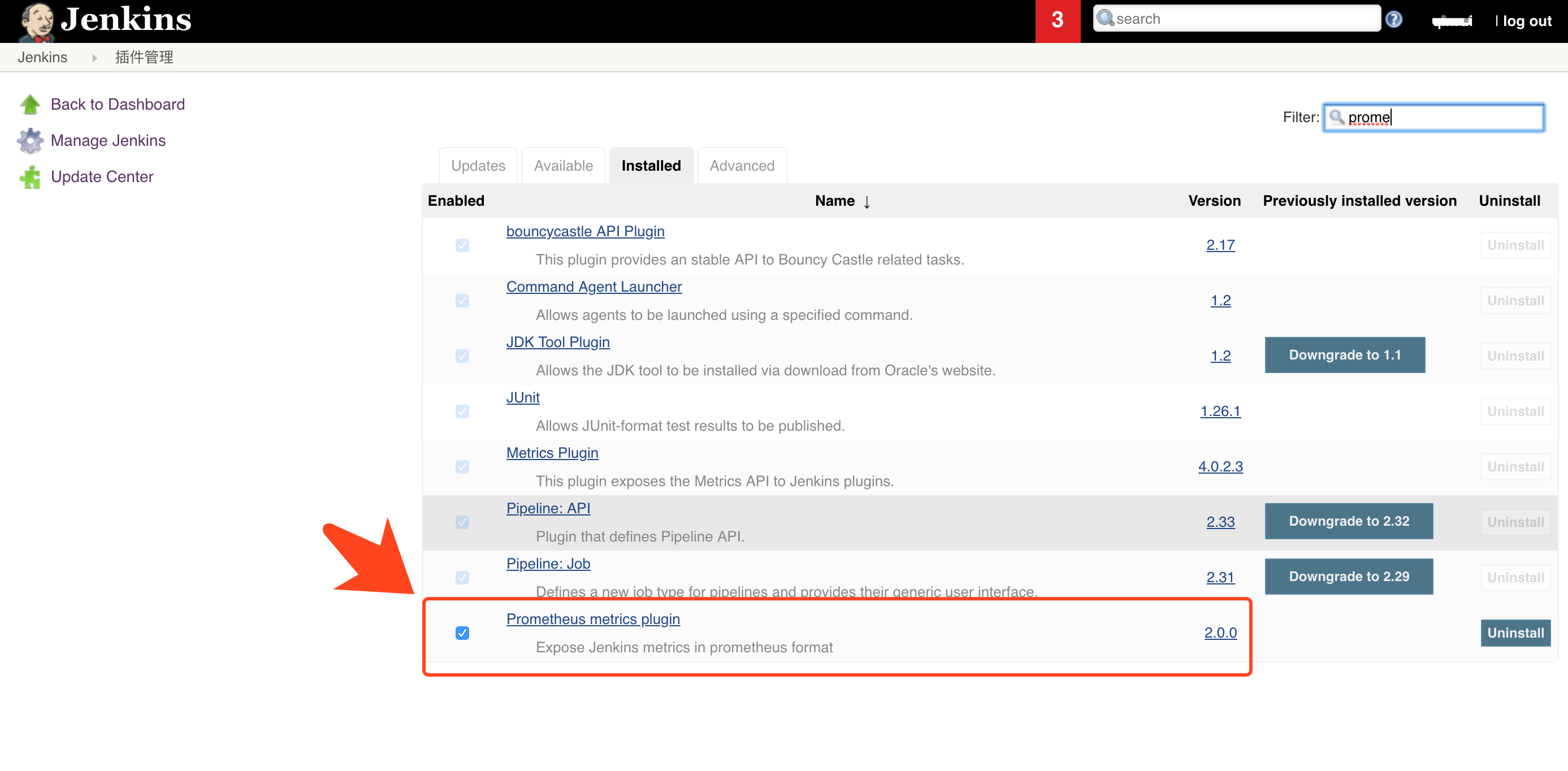

1.Go to “manage Jenkins” then “manage plugins” and install “ Prometheus metrics plugin”

This plugin will expose an endpoint (default /prometheus) with metrics where a Prometheus Server can scrape data.

2.Configure Prometheus to scrape metrics from Jenkins

- job_name: ‘jenkins’
  metrics_path: /prometheus
  static_configs:
    - targets: [‘Jenkins_Host:PORT’]

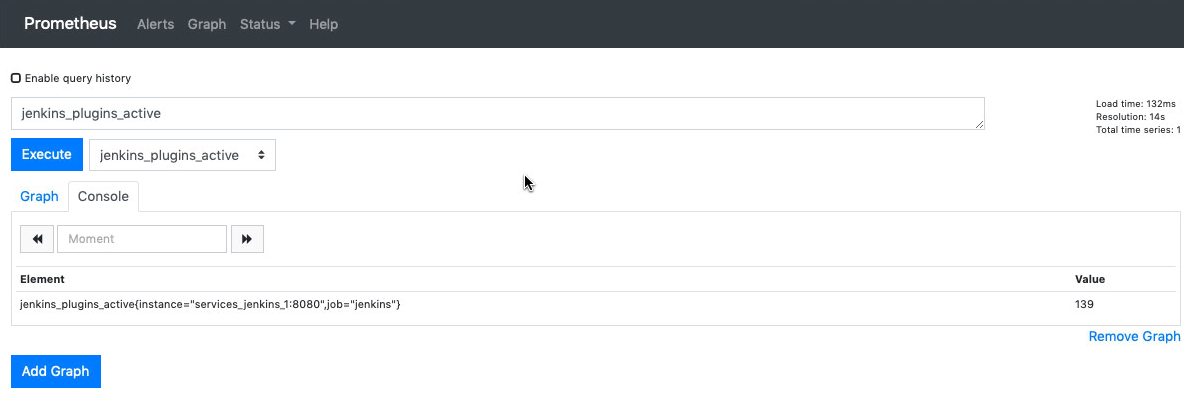

you can go to your prometheus ,find some metrics to dispaly.

3.Create a grafana Dashboard

dashboard link : https://grafana.com/dashboards/9964

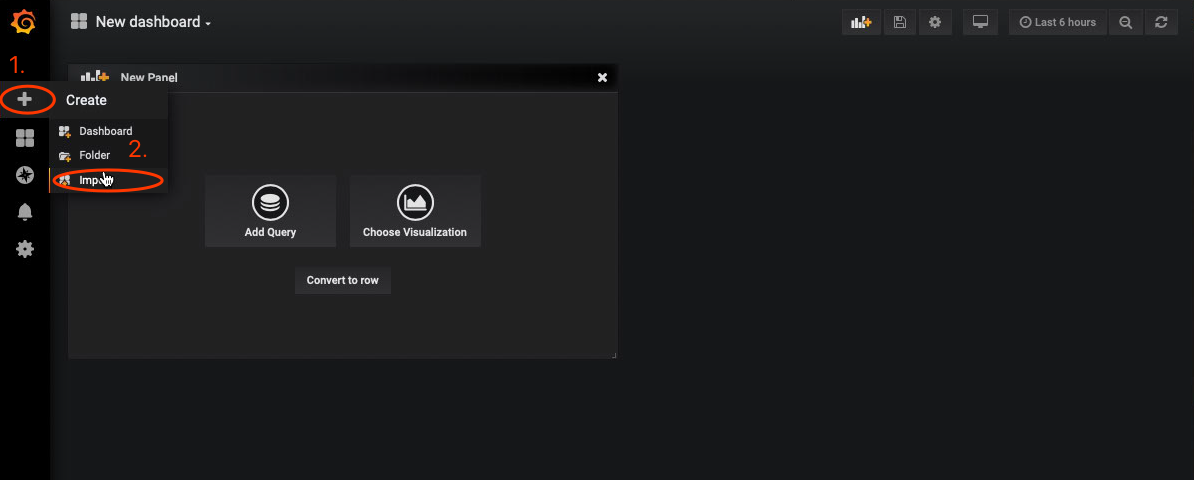

then go to the grafana website import json file :

you can search in the grafana dashboard (https://grafana.com/dashboards)

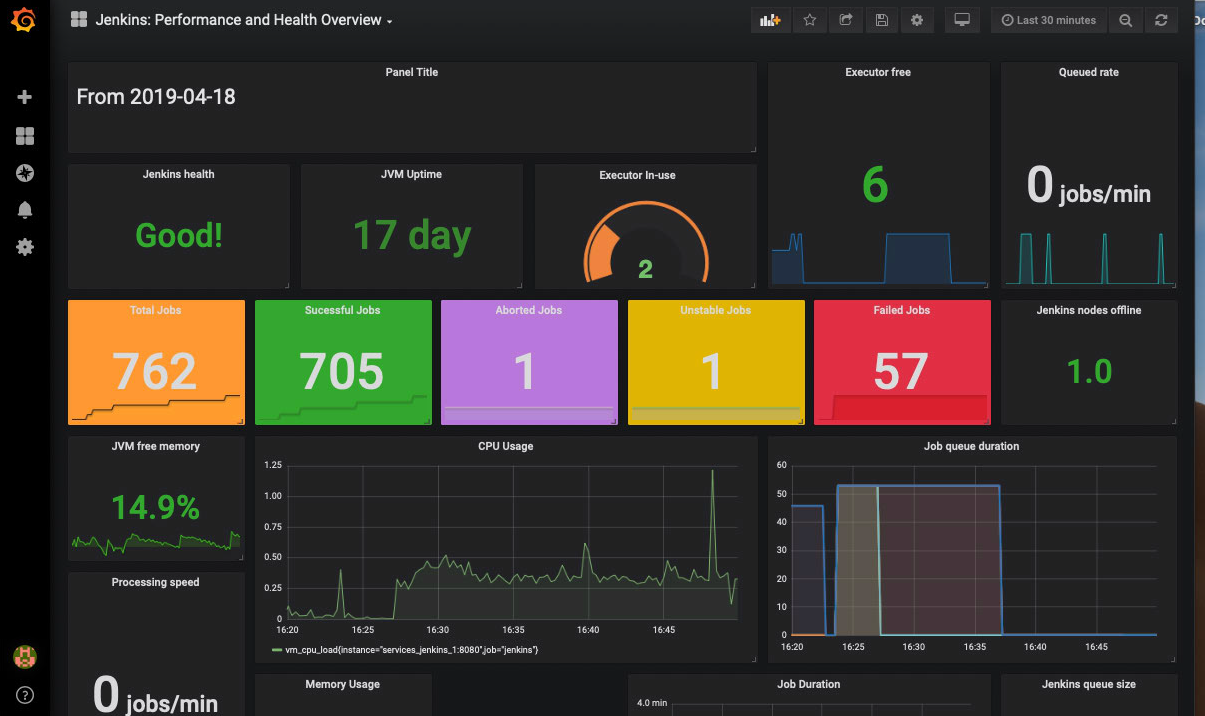

4.Customize your dashboard

example:
